Mortise locks

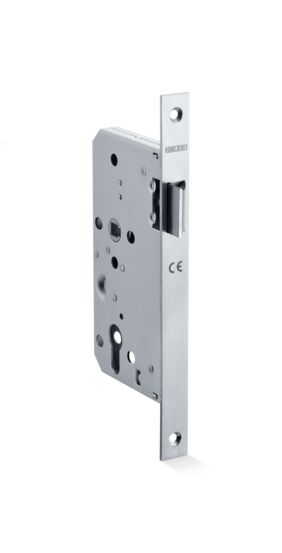

Lock ML PL 72 * Latch lock centres 72 mm for doors in passage areas
- Backset 55 mm and 60 mm available
- Suitable for LH door handle sets and EPC Euro profile cylinders
- Face and strike plate made of stainless steel
- With installation materials and strike plate
Application Areas
- Metal and timber doors in transit zones
- Suitable for DIN left and right
- Fire and smoke protection doors
Technical data
| Lock ML PL 72 | |
| Surface | Brushed stainless steel |
| Suitability for fire protection doors | Yes |
| DIN direction | left / right |
| Latch | Yes |
| Adjustable latch | Yes |
| Handle follower | 8 mm |
| Distance lock | 72 mm |
| Height (lock case) | 165 mm |
| Depth (lock case) | 15 mm |
| Face plate | rectangular |
| Width of flat face plate | 20 cm |
| Faceplate length | 235 cm |
| Type of installation | in the door leaf |
