Euro profile cylinder

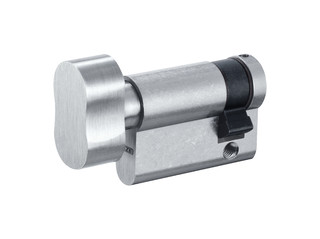

Cylinder EPC T/0 peanut knob * Euro-profile half cylinder with peanut knob
- Key activation from one side, knob activation from the other side
- Maximum door thickness dependent on the height of the Euro profile cylinder sign
- Nickel-plated as a standard feature
- GEZE logo laser etched on all visible sides of the product
- GEZE logo laser etched on one side of the key
- Serial number laser etched on housing and key
Application Areas
- Suitable for all GEZE mortice locks that are suitable for Euro profile cylinders
Technical data
| Cylinder EPC T/0 peanut knob | |
| Dimensions | 17 x 40.5 mm |
| Width | 17 mm |
| Height | 40.5 mm |
| Surface | satin nickel-plated |
| Type of installation | in the door leaf |
| Material | Brass |
| Drive cylinder | Knob |
| Number of keys | 0 Stk. |
Downloads
GEZE EPC T/0 cylinder
LABELLING OBLIGATION: © GEZE GmbH
Variants & Accessories
* Notice about the products displayed
The products mentioned above may vary in form, type, characteristics and function (design, dimensions, availability, approvals, standards etc.) depending on the country. For questions please contact your GEZE contact person or send us an E-Mail .
